Solenoid for collar knitting machine/Embroidery machine

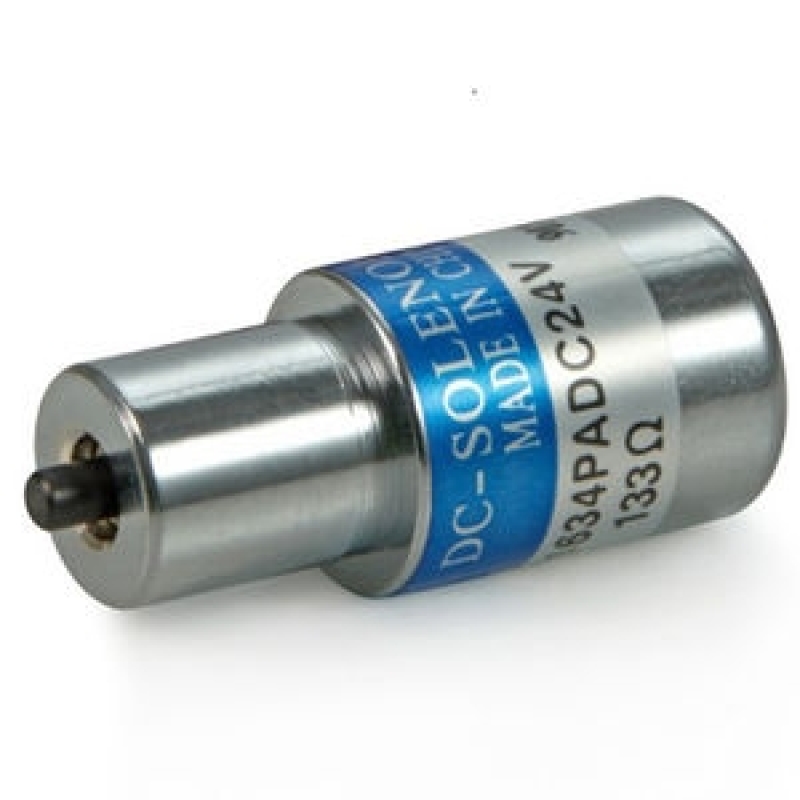

Customise Linear Tubular Solenoid NCE-T1634L/S Specification

Products Name:	tubular Solenoid NCE-T1634L/S
Mode No.:	NCE-T16341L/S
Type:	Linear Solenoid(tubular Solenoid)
Total Weight:	About 33g
Plunger Weight:	About 10g
Size:	∅16*34mm
Application:	collar knitting machine/Embroidery machine etc
Work Mode:	Push & Pull
Install Mode:	Screw
Connection Mode:	Terminal
Rated Voltage (V):	6-48V DC
Power(20℃):	6-60W
Max On Time (s)	1 - Continuous Electricity
Stroke:	3mm

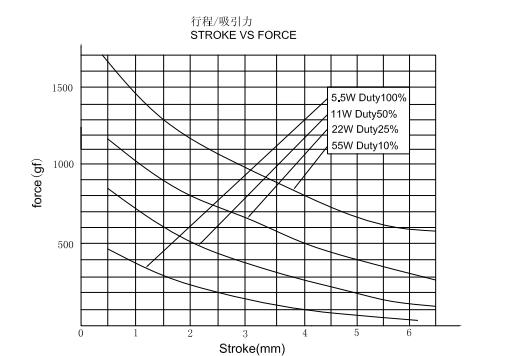

Force:	0-100gf

Solenoid parameter:

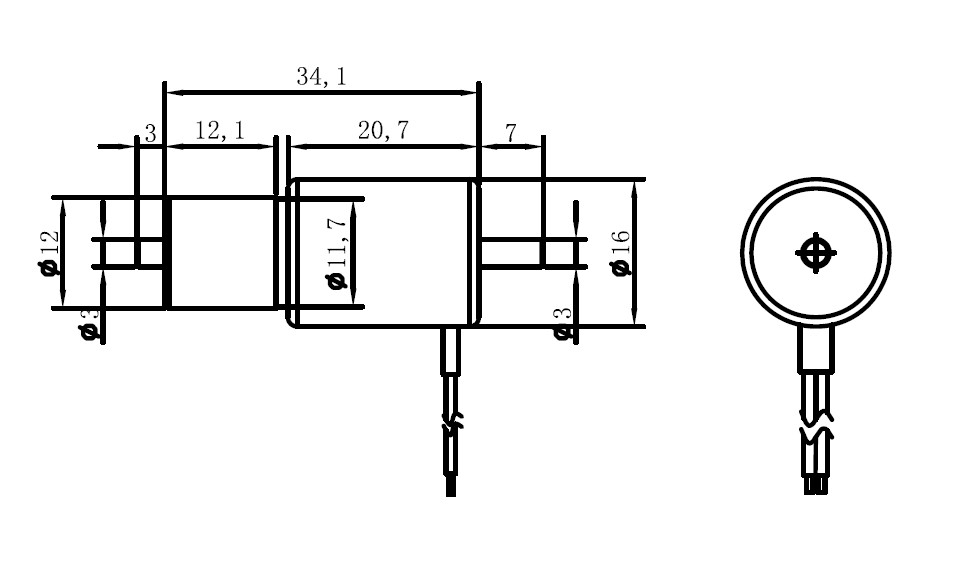

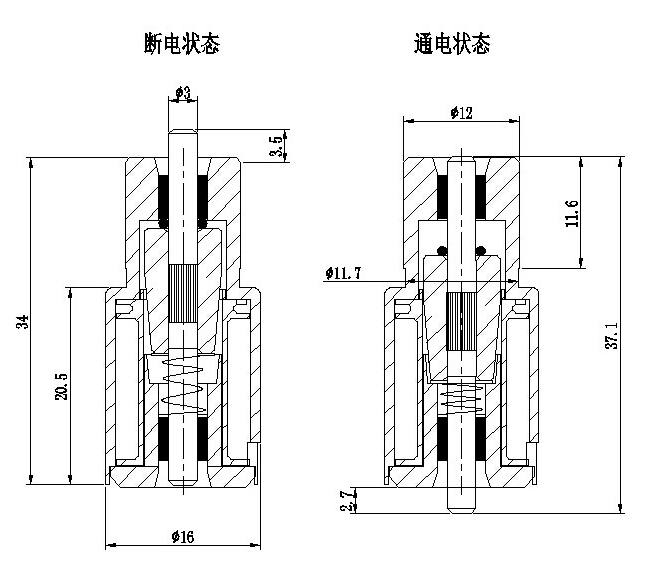

Dimensions: 16.03*37.13
DC 24V +/-10%
Resistance: 130 Ohm +/- 10% at 20 deg C
Current: 185 mA (Ref)
Stroke: 3mm
Weight: 35 grams
Insulation Class: Class B(125 degC)
Insulation Resistance: 50 MOhm, DC 500V
Dielectric Voltage: DC 700V per second
Cycle time: 1, 000, 000 times
