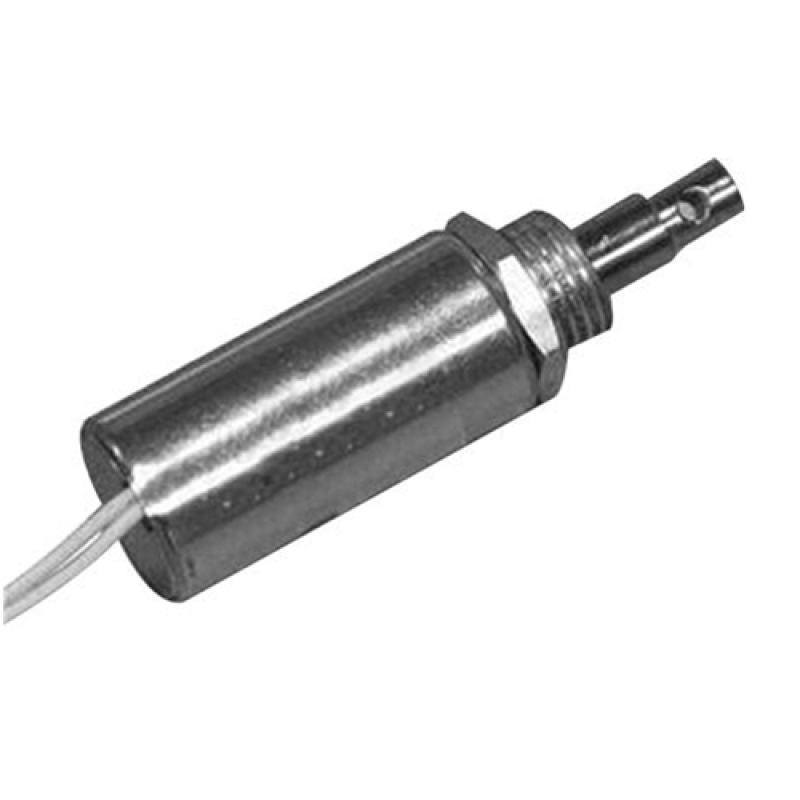

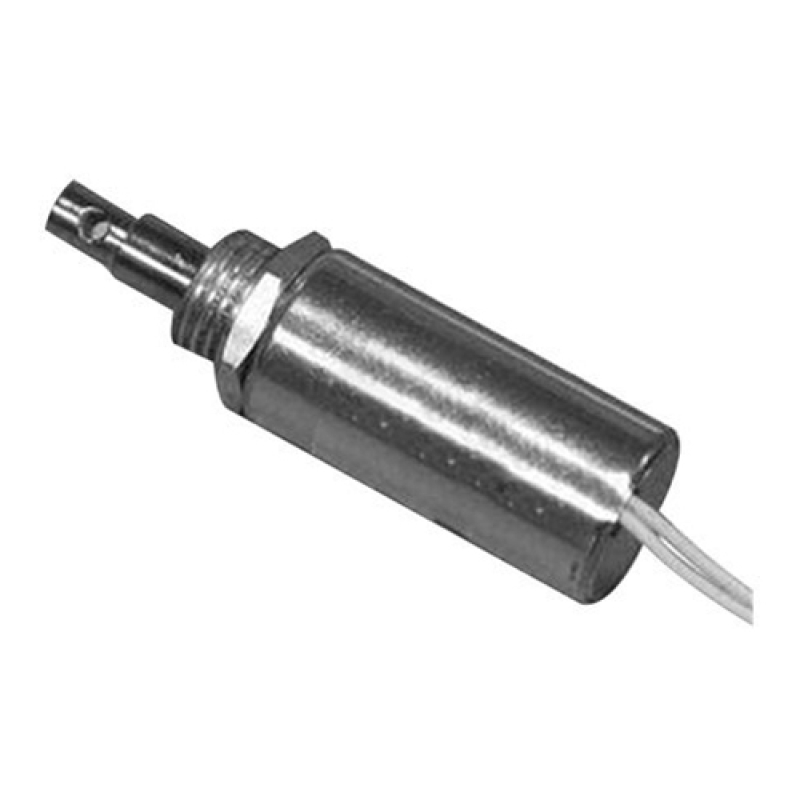

Customise Linear Tubular Solenoid NCE-T1939L/S Specification

Products Name:	tubular Solenoid NCE-T1939L/S
Mode No.:	NCE1939L/S
Type:	Linear Solenoid(tubular Solenoid)
Total Weight:	About 82g
Plunger Weight:	About 30g
Size:	∅19*39.3mm
Application:	Lock etc.
Work Mode:	Push & Pull
Install Mode:	Screw
Connection Mode:	Terminal
Rated Voltage (V):	6-48V DC
Power(20℃):	7-70W
Max On Time (s)	1 - Continuous Electricity
Stroke:	0-15mm

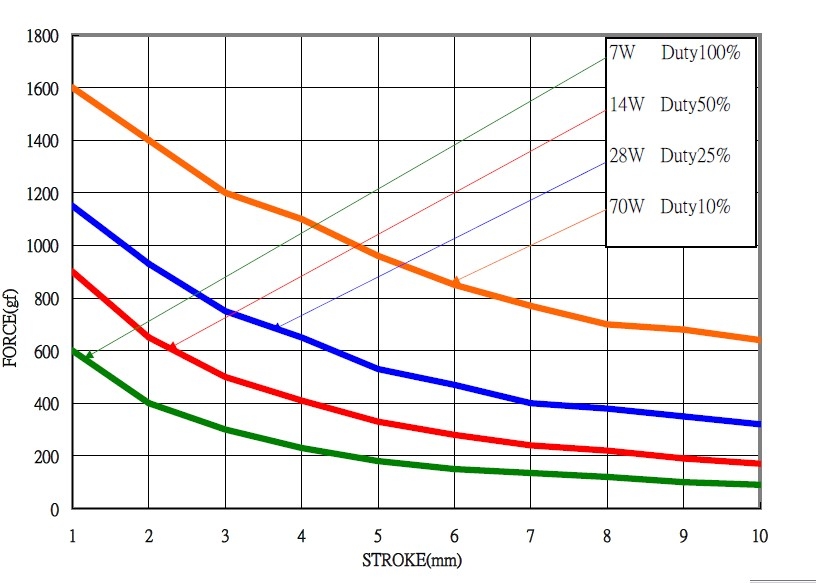

Force:	0-1600gf

Solenoid parameter:
Voltage: 6-48V
Stroke:0-15mm

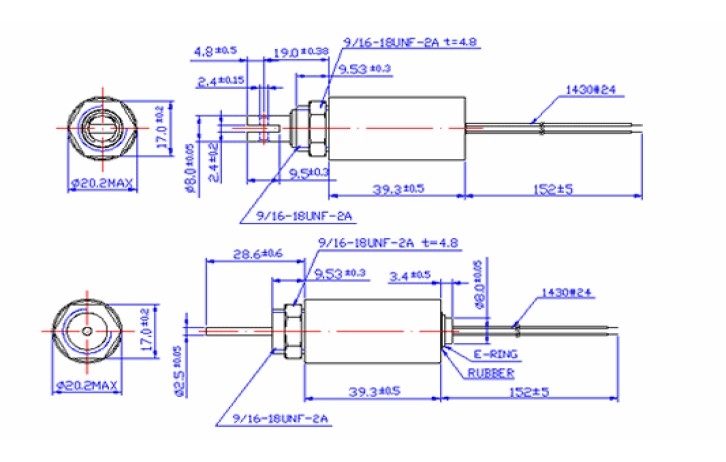

Dimension: frame ∅19*39.3mm
Force: 0-1600 gf
Plunger: push/pulls
