Custom Linear Push Pull Solenoid NCE-1240L/S Specification

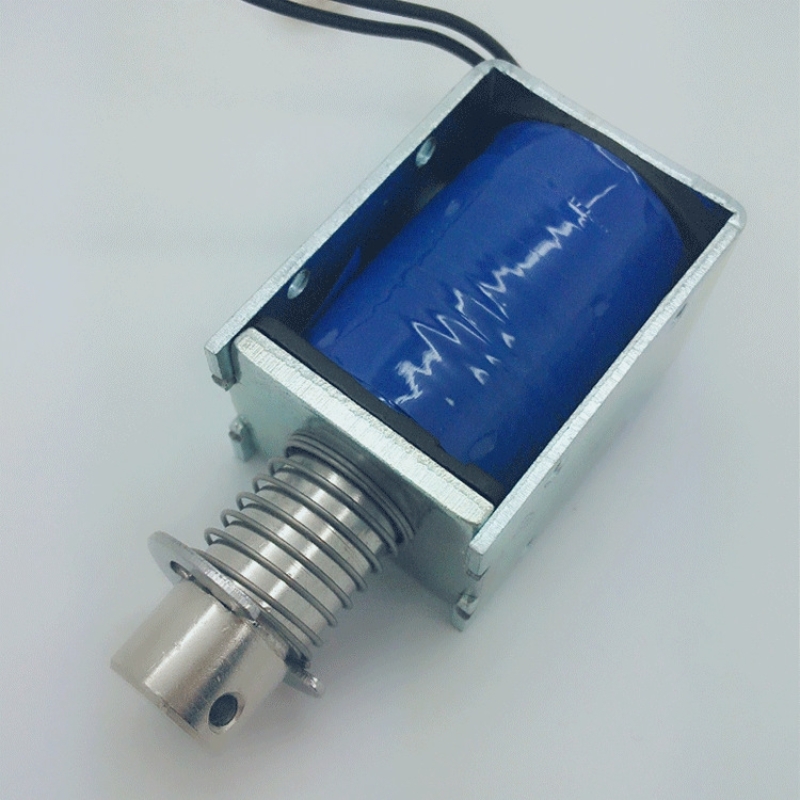

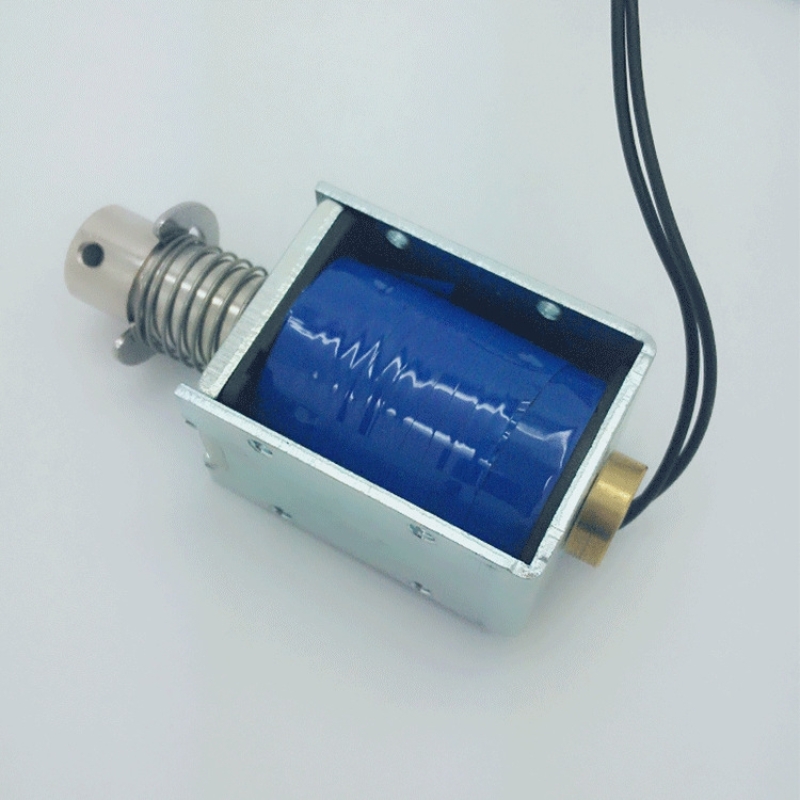

Products Name:	Open frame Solenoid NCE-1240L/S
Mode No.:	NCE1240L/S
Type:	Linear Solenoid(Push/Pull type Solenoid)
Total Weight:	About 147g
Plunger Weight:	About 40g
Size:	40*30*24mm
Application:	Punch Clock Lock etc.
Work Mode:	Push & Pull
Install Mode:	Screw
Connection Mode:	Terminal
Rated Voltage (V):	6-48V DC
Power(20℃):	4-40W
Max On Time (s)	1 - Continuous Electricity
Stroke:	0-13mm

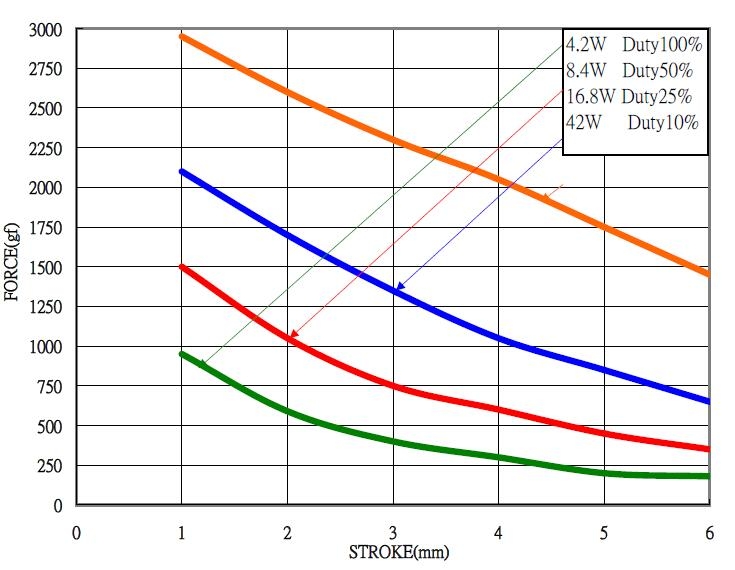

Force:	0-3000gf

Solenoid parameter:
Voltage: 3-48V
Stroke:0-13mm

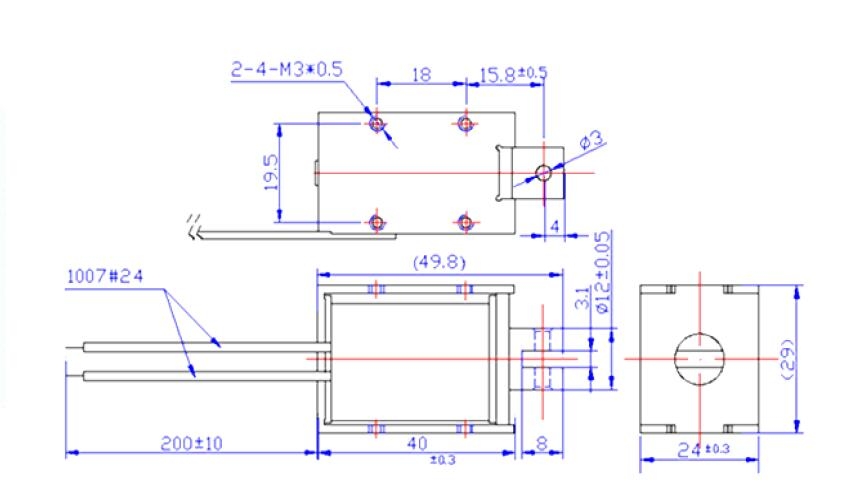

Dimension: frame 40*30*24mm
Force: 0-3000 gf
Plunger: push/pull
