Customise Linear Push Pull Solenoid NCE-0837L/S Specification

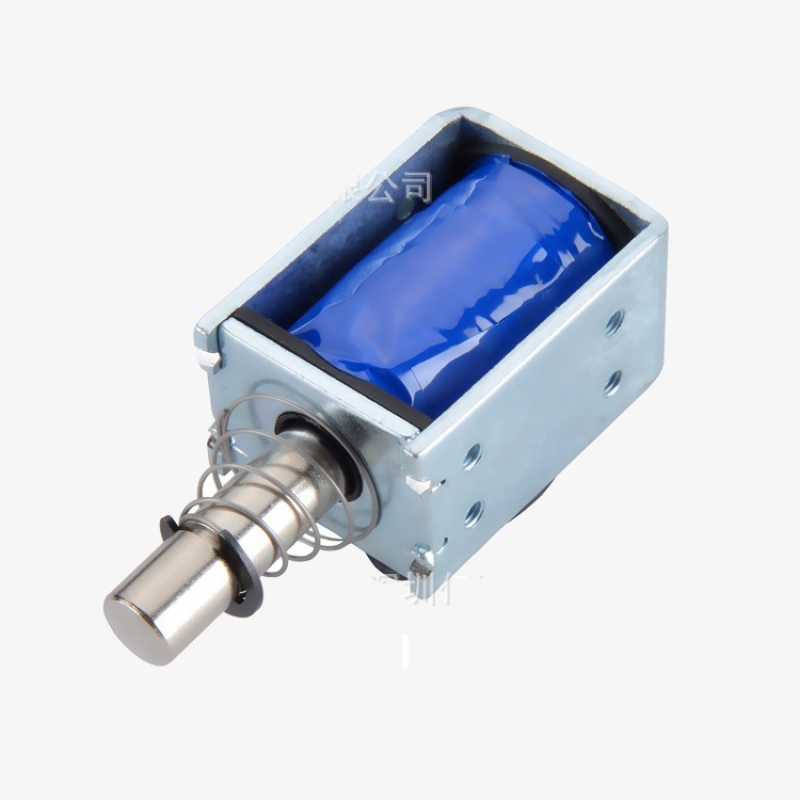

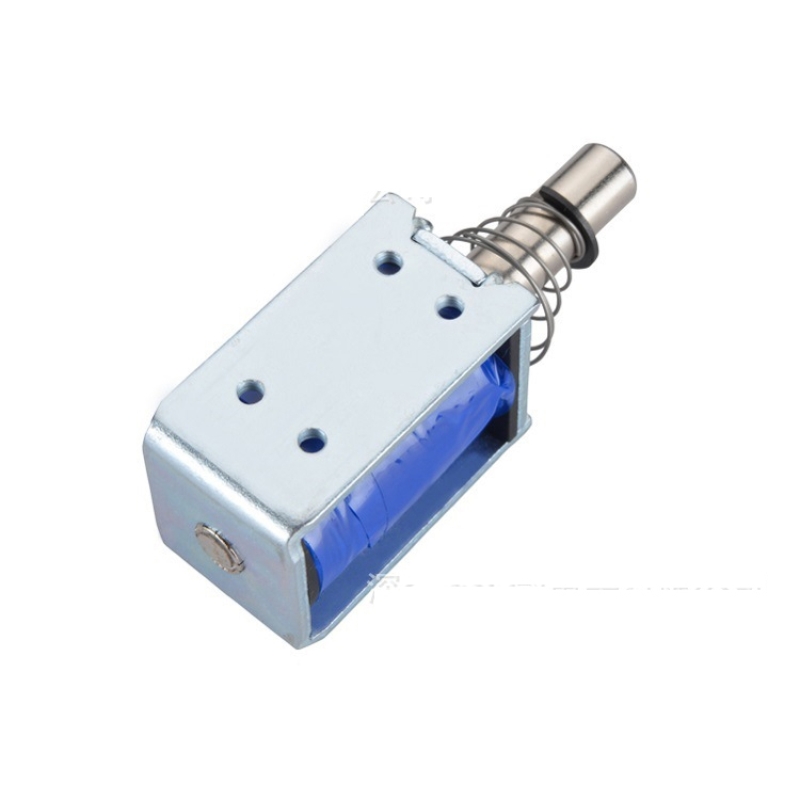

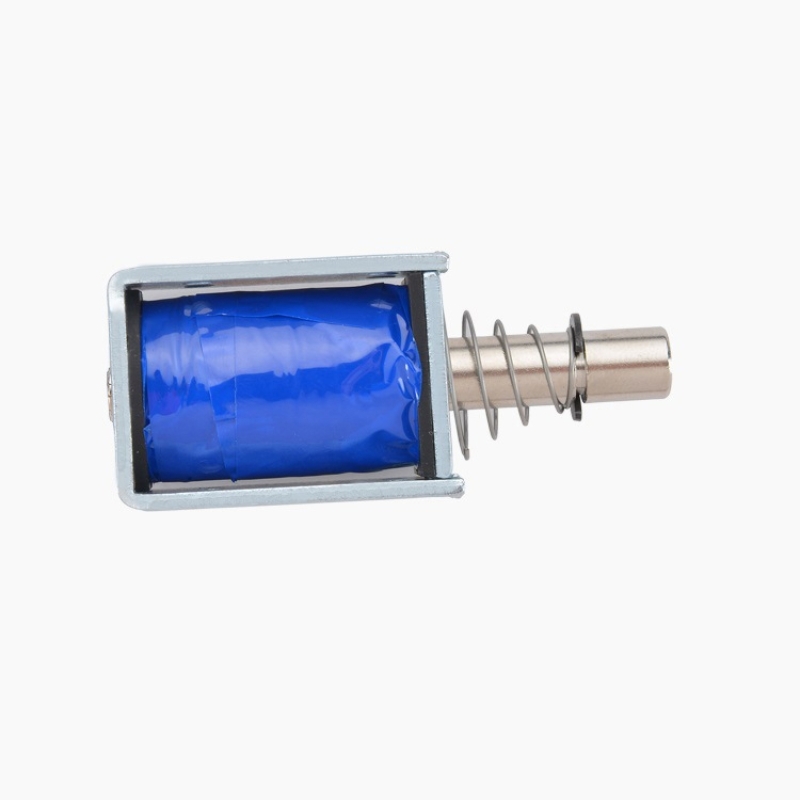

Products Name:	Open frame Solenoid NCE-0837L/S
Mode No.:	NCE0837L/S
Type:	Linear Solenoid(Push type Solenoid)
Total Weight:	About 96g
Plunger Weight:	About 15g

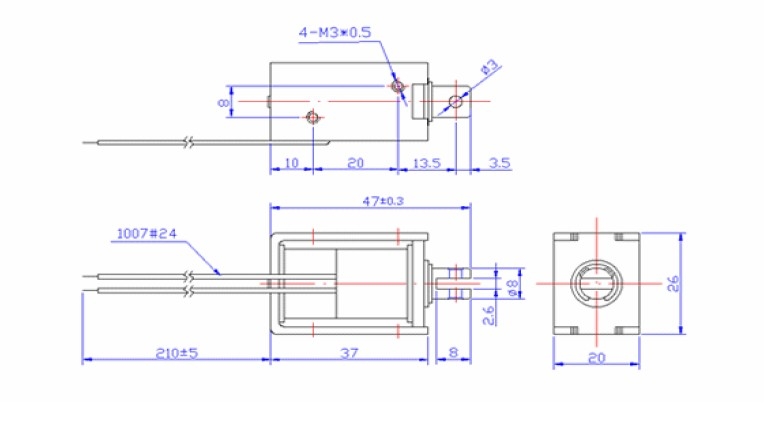

Size:	37*26*20mm
Application:	Punch Clock Lock etc.
Work Mode:	Push & Pull
Install Mode:	Screw
Connection Mode:	Terminal
Rated Voltage (V):	6-48V DC
Power(20℃):	4-40W
Max On Time (s)	1 - Continuous Electricity
Stroke:	0-10mm

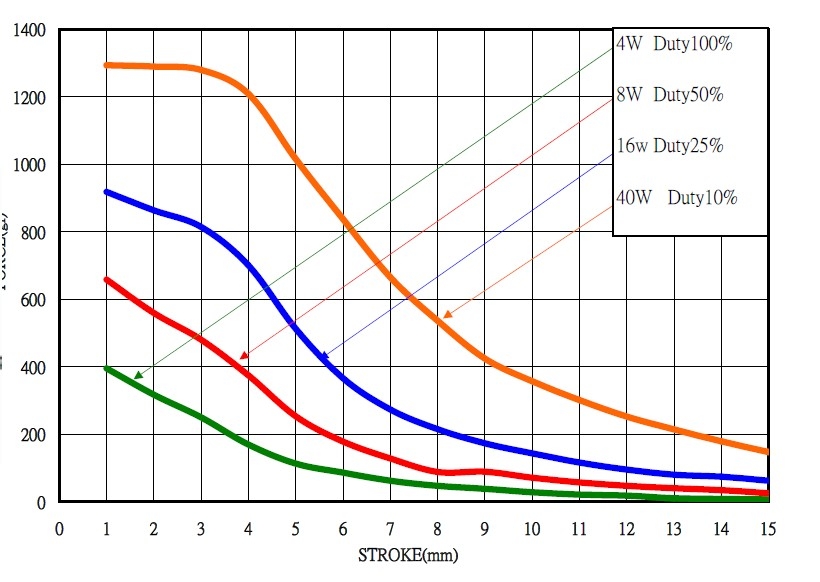

Force:	0-1000gf

Solenoid parameter:
Voltage: 3-48V
Stroke:0-10mm
Dimension: frame 37*26*20mm
Force: 0-1000 gf
Plunger: push/pull
