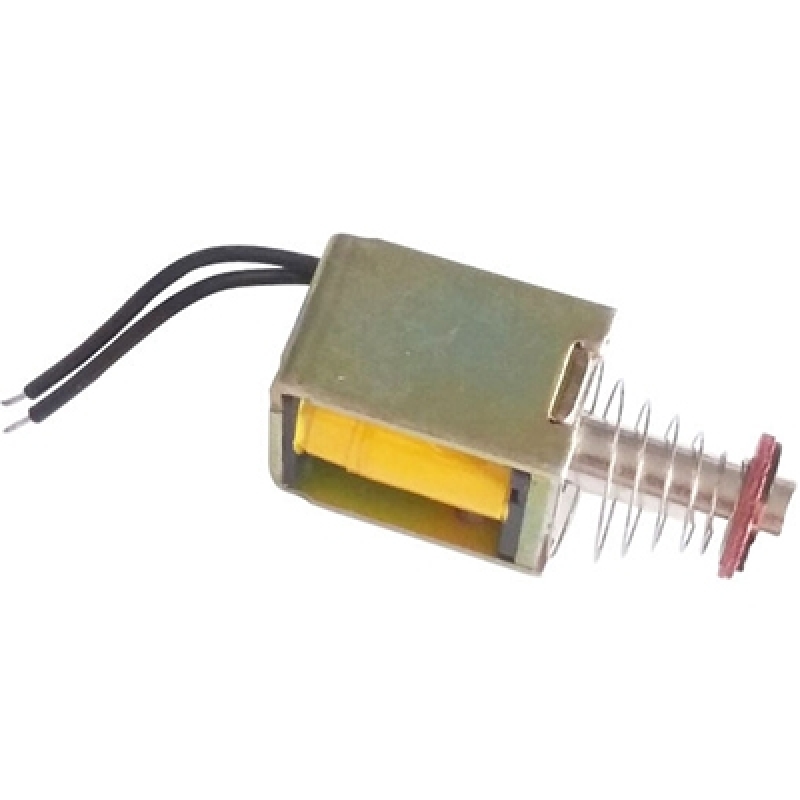

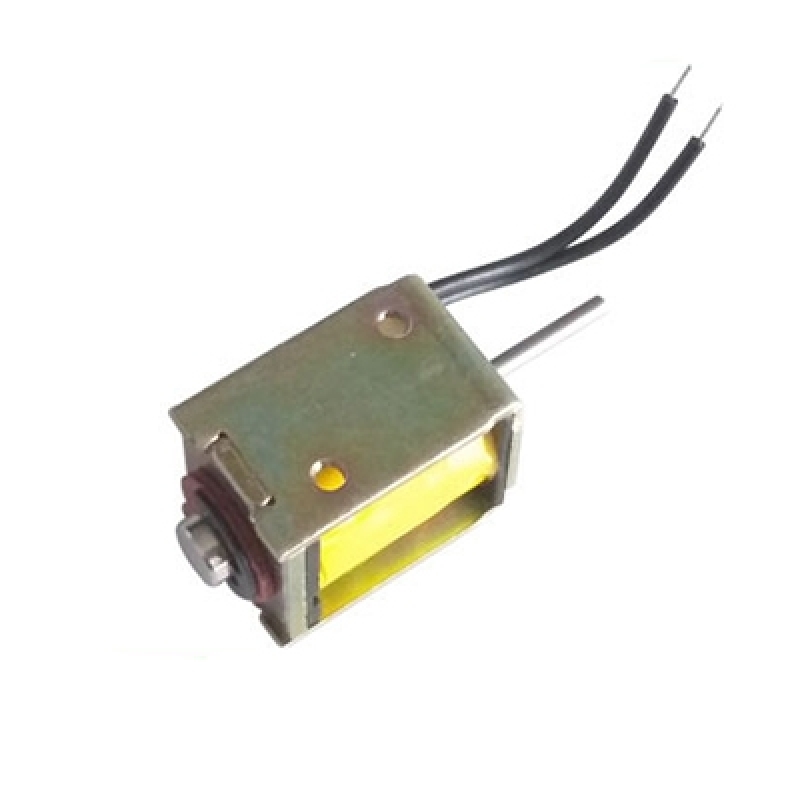

Custom Linear small DC Solenoid NCE-0520L/S Specification

Products Name:	DC Solenoid NCE-0520L/S
Mode No.:	NCE-0520L/S
Type:	Linear Solenoid(frame Solenoid)
Total Weight:	About 18g
Plunger Weight:	About 5g
Size:	20*16*13mm
Application:	Punch Clock Lock, timer machine etc.
Work Mode:	Push & Pull
Install Mode:	Screw
Connection Mode:	Terminal
Rated Voltage (V):	3-48V DC
Power(20℃):	1.6-16W
Max On Time (s)	1 - Continuous Electricity
Stroke:	0-5mm

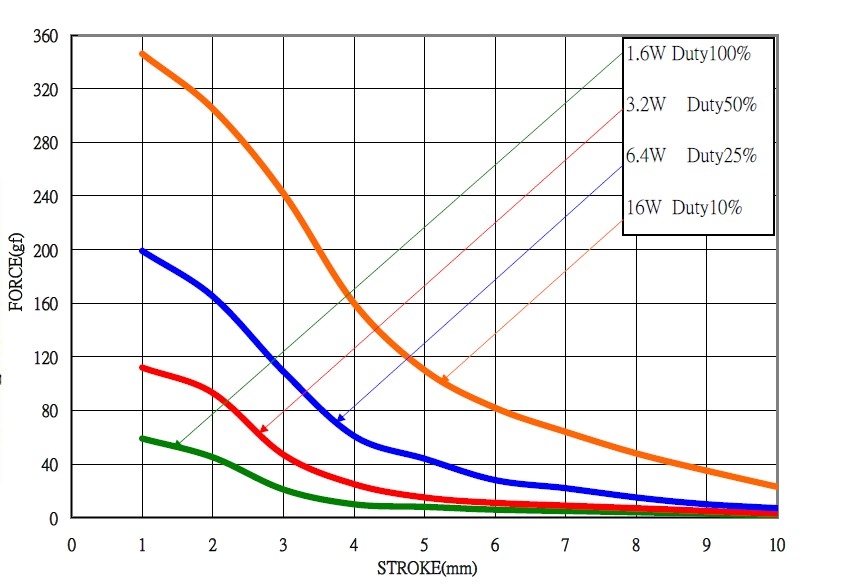

Force:	0-300gf

Solenoid parameter:
Voltage: 3-48V
Stroke:0-5mm

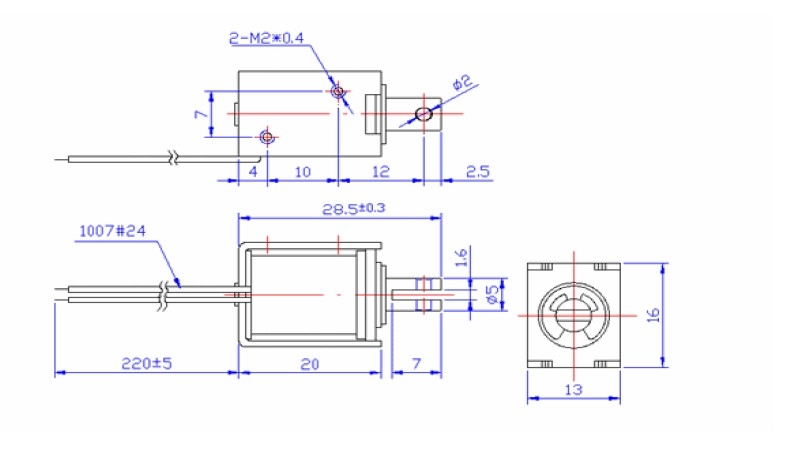

Dimension: frame 20*16*13mm
Force: 0-300 gf
Plunger: push/pull
