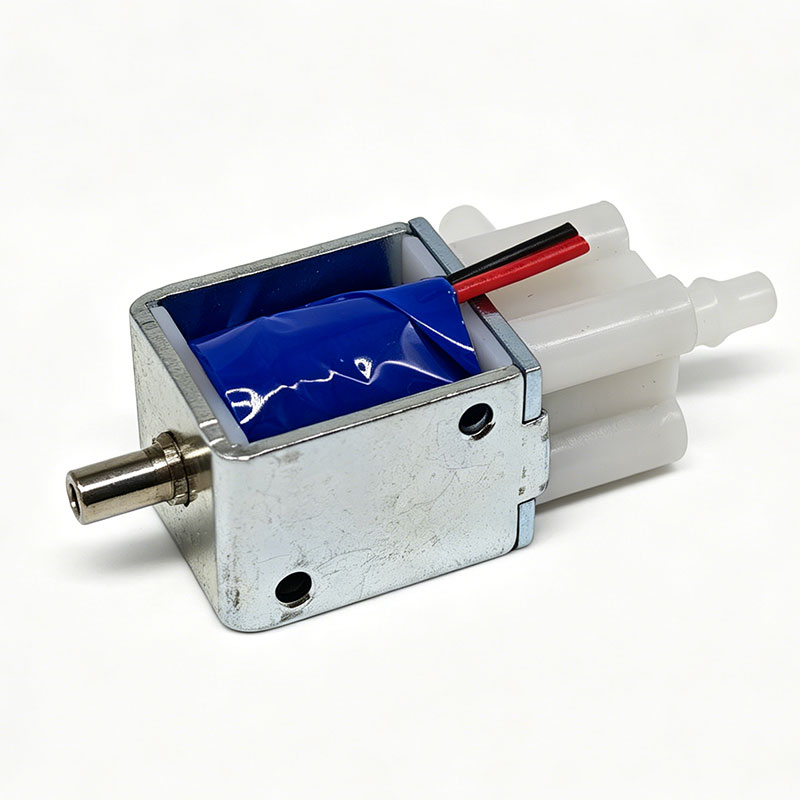

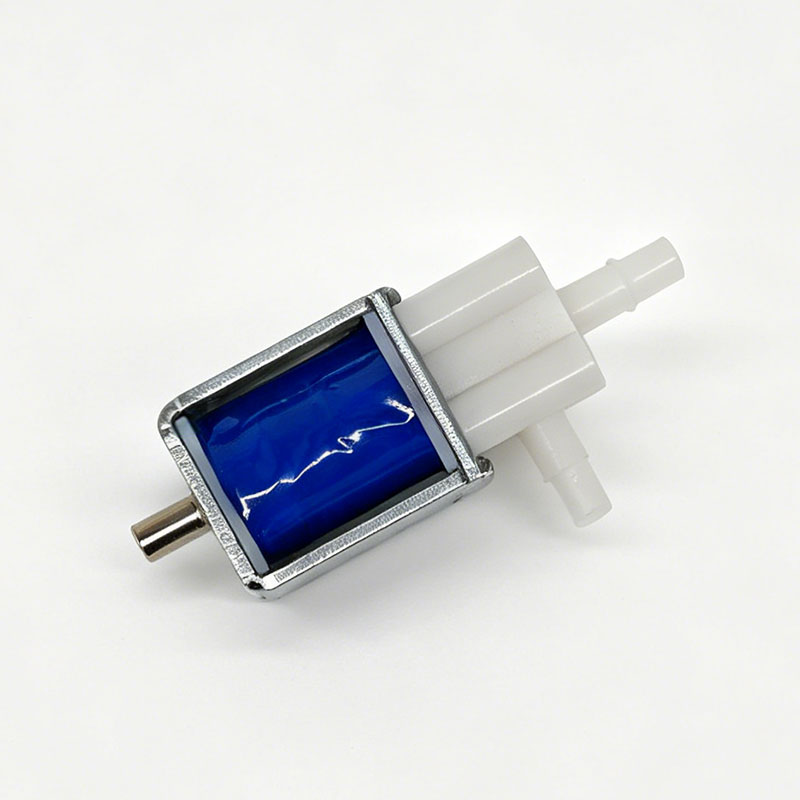

Small Solenoids Valve Air Control Valves NCE-V062601
- Model: V0626
- Brand:
- Port:
- Quantity:
Product Detailed Specification
1. Product Name & Model (P/N)
Miniature DC Solenoid Valve，Model: NCE-V062601
2. Standard Test Conditions
2.1 Ambient Temperature Range: -20℃ ~ +45℃2.2 Relative Humidity: 5% ~ 60%RH2.3 Rated Voltage: DC 20V2.4 Power Consumption: 3W (DC 20V, Coil Resistance: 133Ω±10%)2.5 Operation Cycle: Continuous Duty, ED 100%
4. Electrical Characteristics
4.1 Working Voltage: DC 20V±10%4.2 Operating Pressure & Pull-in Voltage: Applicable working pressure: 0~200kPa; Minimum pull-in voltage: DC 18V4.3 Insulation Resistance: ≥100MΩ @ DC 500V (Between coil and bobbin)4.4 Dielectric Withstand Voltage: AC 700V, 50/60Hz, 1 second; Maximum leakage current: 1mA (Between coil and housing)
5. Service Life
More than 200,000 cycles under normal operating conditions

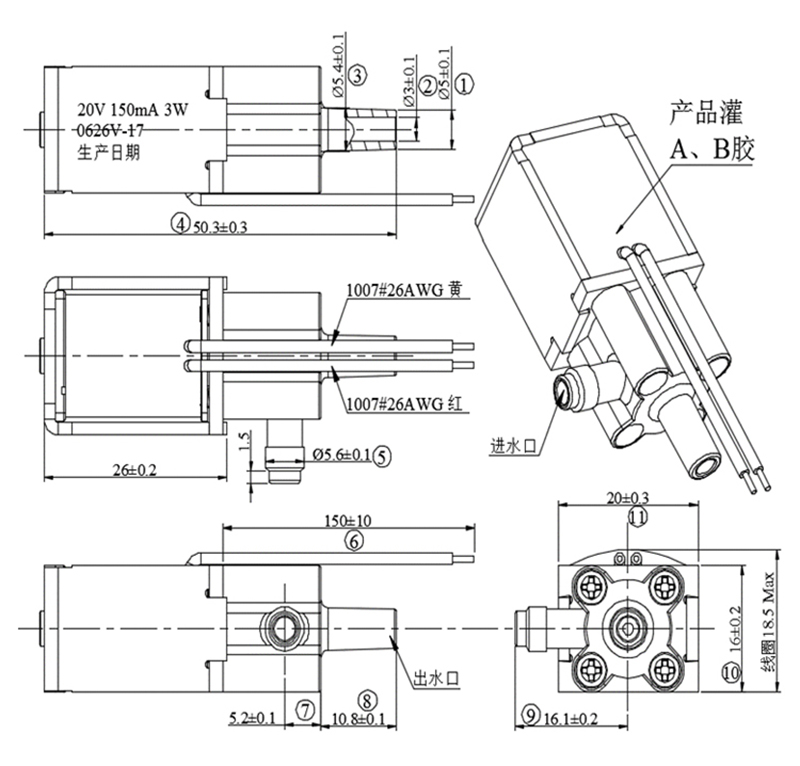

Solenoid air valve V0626 type drawing
