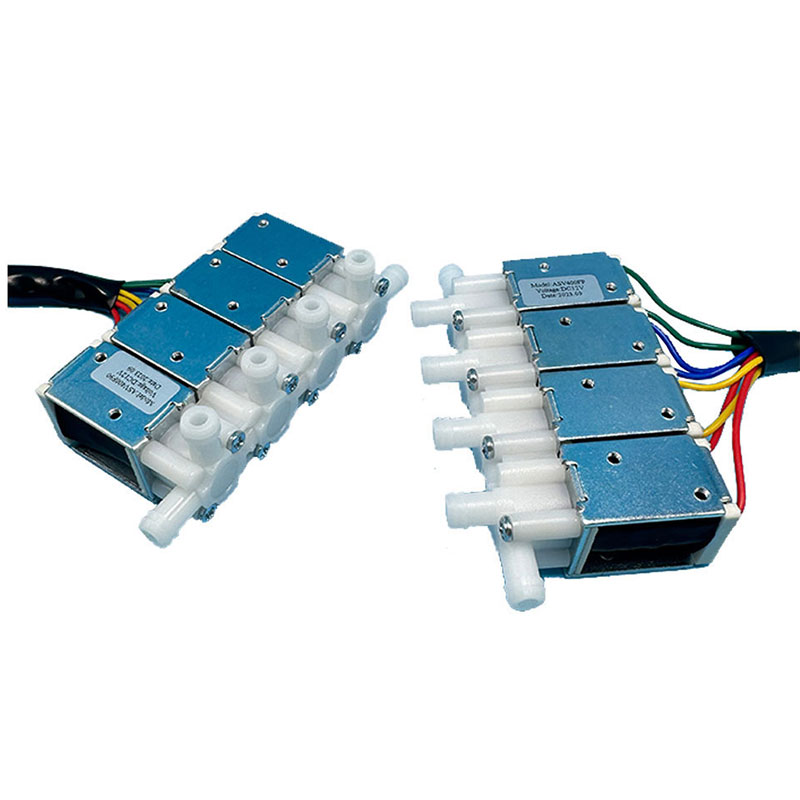

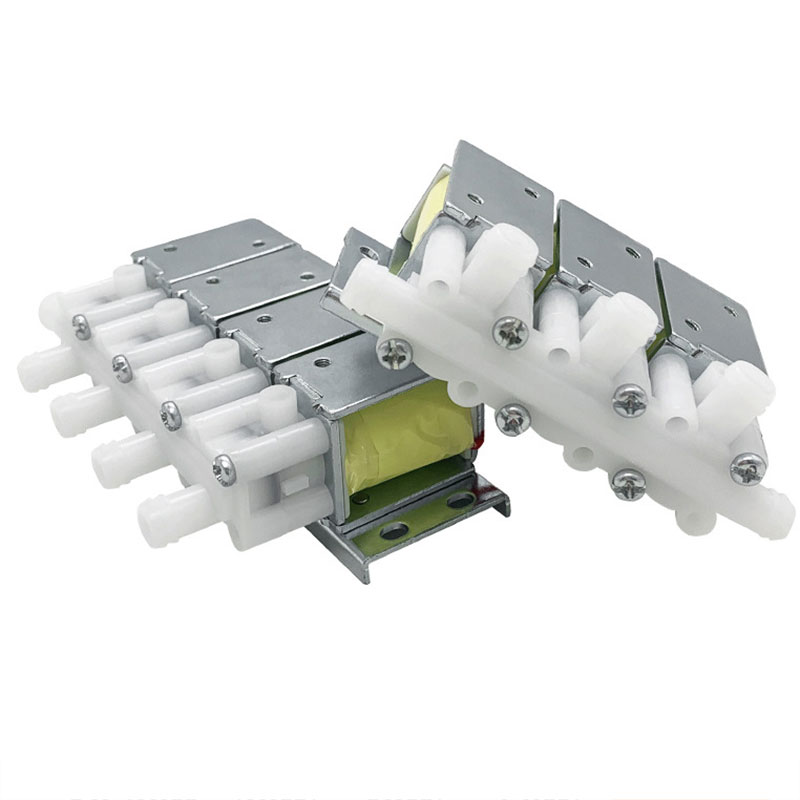

Air release solenoid valve for massage chair NCE0630V4U
- Model: NCE0630V4U
- Brand:
- Port:
- Quantity:
Product Detailed Specification
1. Product Name & Model (P/N)
Miniature DC Solenoid Valve，Model: NCE0630V4U
2. Standard Test Conditions
2.1 Ambient Temperature Range: -20℃ ~ +45℃2.2 Relative Humidity: 5% ~ 60%RH2.3 Rated Voltage: DC 12V & 24V2.4 Power Consumption: 2.21W (DC 12V, Coil Resistance: 65Ω±10%) 2.4W & 24V DC2.5 Operation Cycle: Continuous Duty, ED 100%
4. Electrical Characteristics
4.1 Working Voltage: DC 12V±10% Or DC 24V±10%4.2 Operating Pressure & Pull-in Voltage: Applicable working pressure: 0~200kPa; 4.3 Insulation Resistance: ≥100MΩ @ DC 500V (Between coil and bobbin)4.4 Dielectric Withstand Voltage: AC 700V, 50/60Hz, 1 second; Maximum leakage current: 1mA (Between coil and housing)
5. Service Life
More than 200,000 cycles under normal operating conditions
Main application: Pressure relief valve multi-port solenoid valve fitness and beauty equipment leg massager triple and quadruple miniature valves

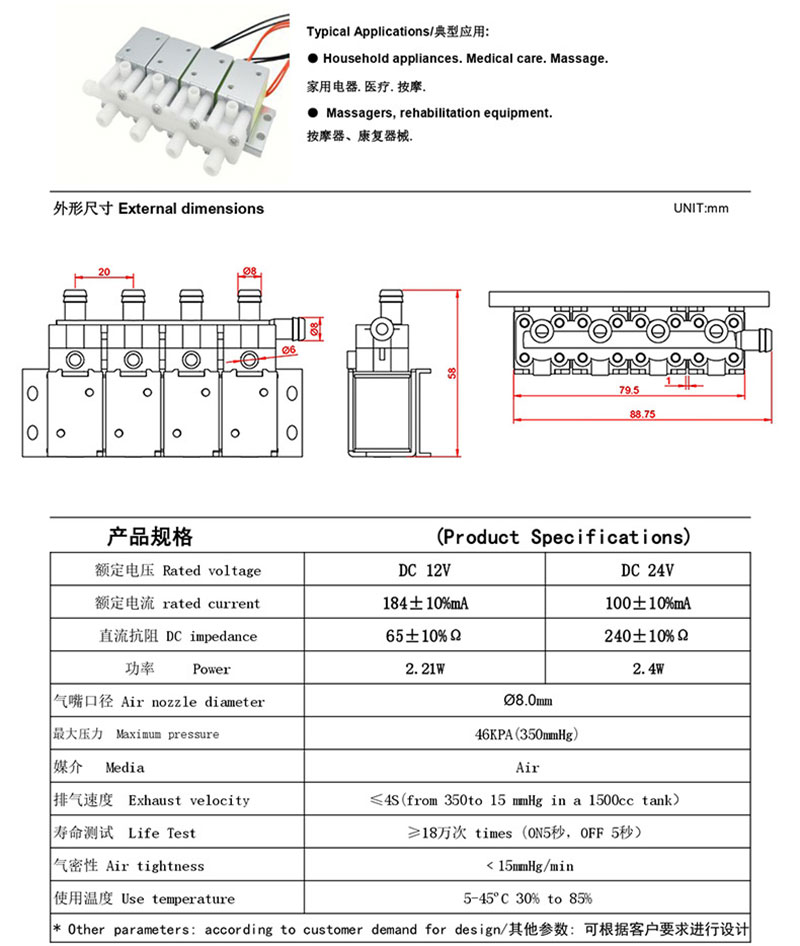

Solenoid air valve NCE0630V4U type drawing
