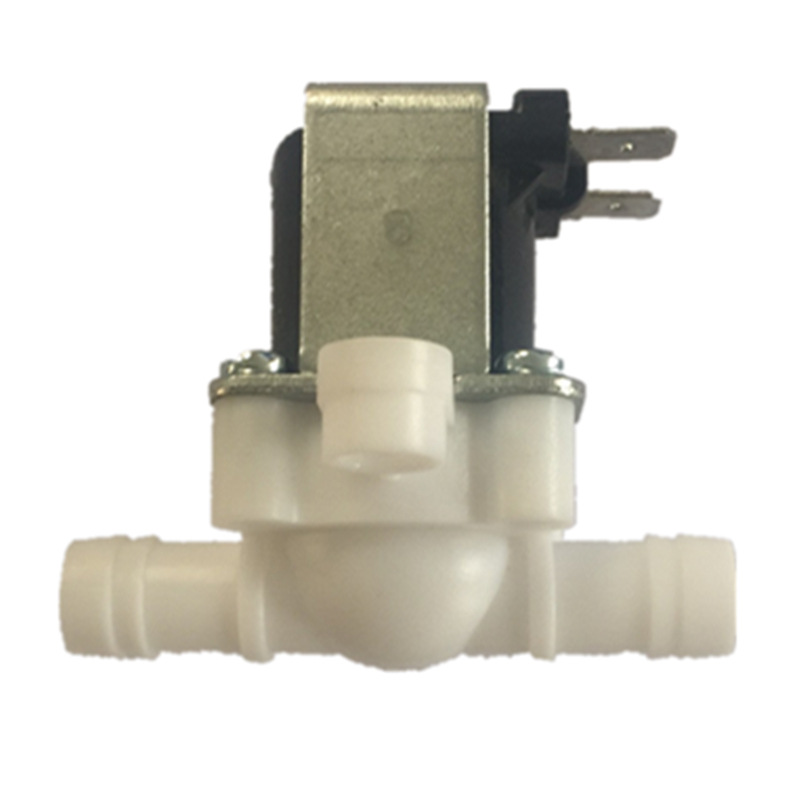

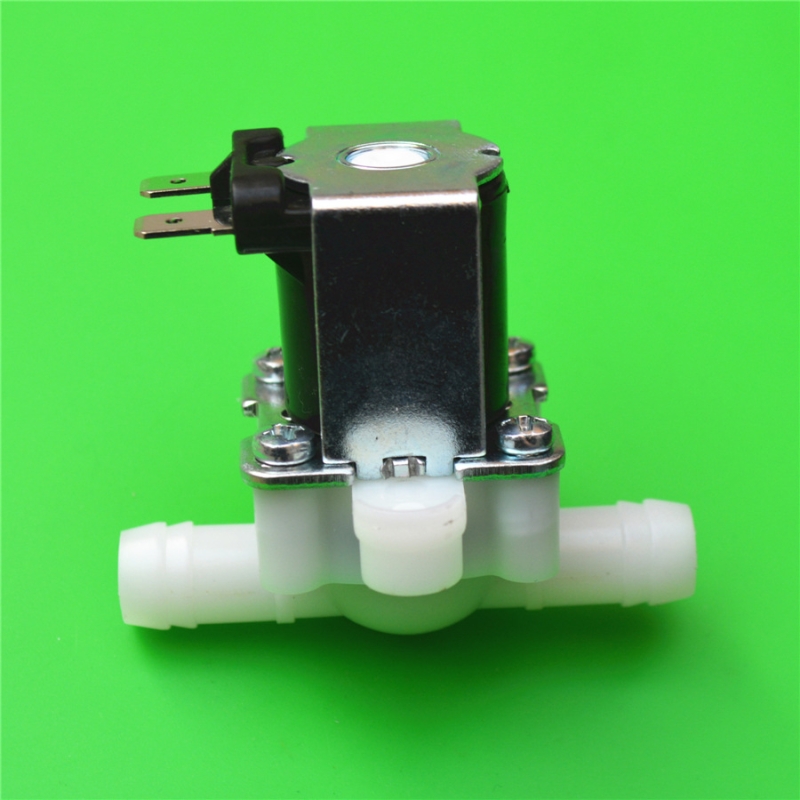

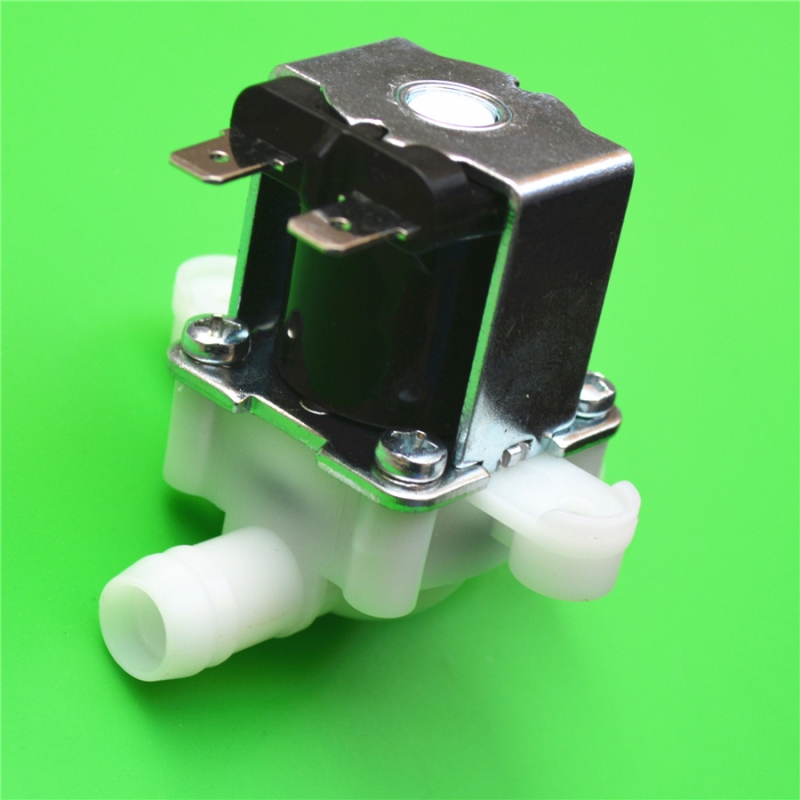

Solenoid valve for water control valve NCE0840V12U
- Model: NCE0840V12U
- Brand:
- Port:
- Quantity:
Product Detailed Specification
1. Product Name & Model (P/N)
Miniature DC Solenoid Valve，Model: NCE0840V12U
2. Standard Test Conditions
2.1 Ambient Temperature Range: -20℃ ~ +45℃2.2 Relative Humidity: 5% ~ 60%RH2.3 Rated Voltage: DC 12V or 24V2.4 Power Consumption: 3.6W2.5 Operation Cycle: Continuous Duty, ED 75%
4. Electrical Characteristics
4.1 Working Voltage: DC 12V±10% Or DC 24V±10%4.2 Operating Pressure & Pull-in Voltage: Applicable working pressure: 0~200kPa; 4.3 Insulation Resistance: ≥100MΩ @ DC 500V (Between coil and bobbin)4.4 Dielectric Withstand Voltage: AC 700V, 50/60Hz, 1 second; Maximum leakage current: 1mA (Between coil and housing)
5. Service for
More than 500,000 cycles under normal operating conditions
Main application:
Primarily suitable for smart home appliances such as water purifiers and drinking water dispensers
It can also be used for appliances such as: water heaters, coffee makers, ice makers, dishwashers, and bidet toilets
Industrial humidifiers, large-scale refrigeration equipment, air coolers
Orchard sprinkler irrigation, agricultural drip irrigation, greenhouse sprinkler systems
Dental cleaning machine, tooth cleaning device, infusion (output) device, etc

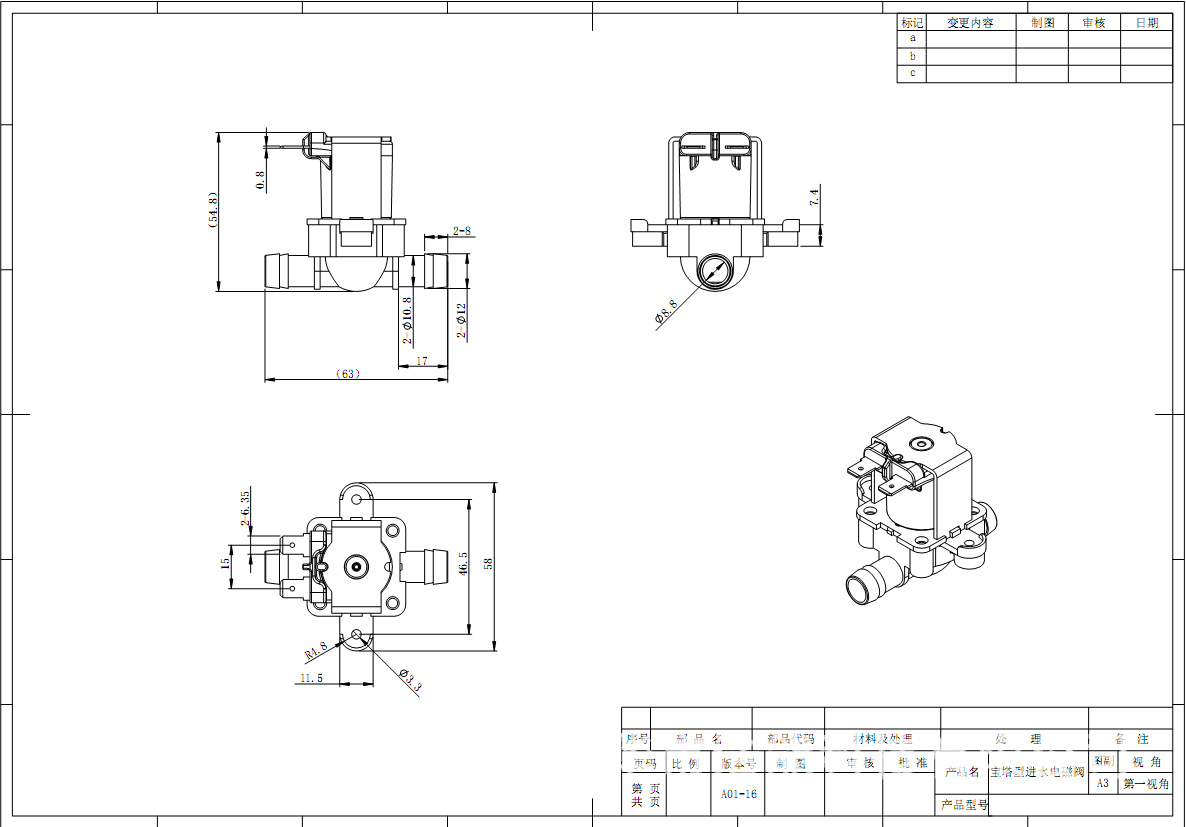

Solenoid air valve NCE0840V12U type drawing
